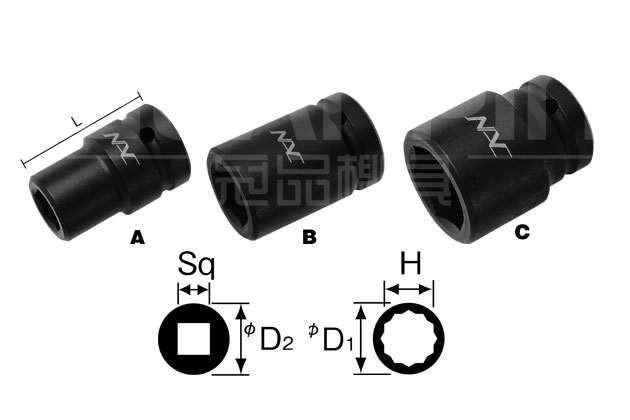

| 品名 | 形状 | 插入角(mm) | Ｈ(mm) | ØD1(mm) | ØD2(mm) | L(mm) |
| 408 | A | 12.7 | 8 | 15.5 | 25 | 40 |
| 409 | A | 12.7 | 9 | 16 | 25 | 40 |
| 410 | A | 12.7 | 10 | 17.5 | 25 | 40 |
| 411 | A | 12.7 | 11 | 19 | 25 | 40 |
| 412 | A | 12.7 | 12 | 20.5 | 25 | 40 |
| 413 | A | 12.7 | 13 | 21.5 | 25 | 40 |
| 414 | A | 12.7 | 14 | 22.5 | 25 | 40 |
| 415 | A | 12.7 | 15 | 23.5 | 25 | 40 |
| 416 | B | 12.7 | 16 | 25 | 25 | 40 |
| 417 | B | 12.7 | 17 | 28 | 28 | 42 |
| 418 | C | 12.7 | 18 | 29 | 28 | 42 |
| 419 | C | 12.7 | 19 | 30 | 28 | 42 |
| 421 | C | 12.7 | 21 | 33 | 28 | 42 |
| 422 | C | 12.7 | 22 | 34 | 28 | 42 |
| 423 | C | 12.7 | 23 | 35 | 28 | 45 |
| 424 | C | 12.7 | 24 | 36 | 28 | 45 |
| 426 | C | 12.7 | 26 | 39 | 28 | 45 |
| 427 | C | 12.7 | 27 | 41 | 28 | 45 |
| 429 | C | 12.7 | 29 | 44 | 28 | 45 |
| 430 | C | 12.7 | 30 | 46 | 28 | 45 |
| 432 | C | 12.7 | 32 | 48 | 28 | 45 |
| 435 | C | 12.7 | 35 | 50 | 28 | 50 |
| 436 | C | 12.7 | 36 | 54 | 28 | 50 |
| 438 | C | 12.7 | 38 | 55 | 28 | 53 |
