选型明细

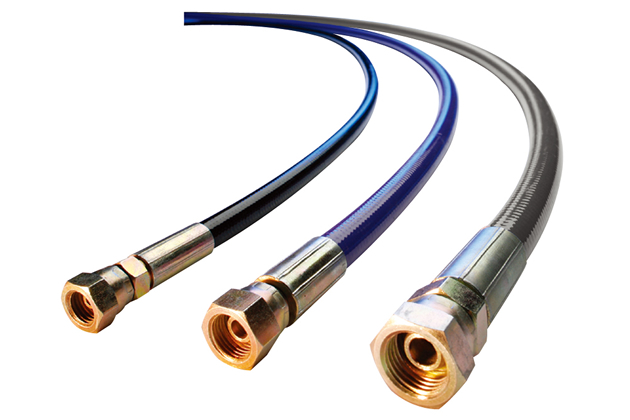

| Xtreme-Duty 4500 psi (310 bar)高压软管 | Xtreme-Duty 5600 psi (386 bar)高压软管 | Xtreme-Duty 7250 psi (500 bar)高压软管 | |||||||||
| 零件号 | 长度 | 直径 |
母NPSM (英标锥管螺纹) |
零件号 | 长度 | 直径 |
母NPSM (英标锥管螺纹) |
零件号 | 长度 | 直径 |
母NPSM (英标锥管螺纹) |
| H42503 | 3 ft (0.9m) | 1/4 in (6.4mm) | 1/4 in | H52503 | 3 ft (0.9m) | 1/4 in (6.4mm) | 1/4 in | H72503 | 3 ft (0.9m) | 1/4 in (6.4mm) | 1/4 in |
| H42506 | 6 ft (1.8m) | 1/4 in (6.4mm) | 1/4 in | H52506 | 6 ft (1.8m) | 1/4 in (6.4mm) | 1/4 in | H72506 | 6 ft (1.8m) | 1/4 in (6.4mm) | 1/4 in |
| H42510 | 10 ft (3.0m) | 1/4 in (6.4mm) | 1/4 in | H52510 | 10 ft (3.0m) | 1/4 in (6.4mm) | 1/4 in | H72510 | 10 ft (3.0m) | 1/4 in (6.4mm) | 1/4 in |
| H42525 | 25 ft (7.6m) | 1/4 in (6.4mm) | 1/4 in | H52525 | 25 ft (7.6m) | 1/4 in (6.4mm) | 1/4 in | H72525 | 25 ft (7.6m) | 1/4 in (6.4mm) | 1/4 in |
| H42550 | 50 ft (15.2m) | 1/4 in (6.4mm) | 1/4 in | H52550 | 50 ft (15.2m) | 1/4 in (6.4mm) | 1/4 in | H72550 | 50 ft (15.2m) | 1/4 in (6.4mm) | 1/4 in |
| H4251X | 100 ft (30.5m) | 1/4 in (6.4mm) | 1/4 in | H5251X | 100 ft m(30.5) | 1/4 in (6.4mm) | 1/4 in | H7251X | 100 ft m(30.5) | 1/4 in (6.4mm) | 1/4 in |
| H43803 | 3 ft (0.9m) | 3/8 in (9.5mm) | 3/8 in | H53803 | 3 ft (0.9m) | 3/8 in (9.5mm) | 3/8 in | H73803 | 3 ft (0.9m) | 3/8 in (9.5mm) | 3/8 in |
| H43806 | 6 ft (1.8m) | 3/8 in (9.5mm) | 3/8 in | H53806 | 6 ft (1.8m) | 3/8 in (9.5mm) | 3/8 in | H73806 | 6 ft (1.8m) | 3/8 in (9.5mm) | 3/8 in |
| H43810 | 10 ft (3.0m) | 3/8 in (9.5mm) | 3/8 in | H53810 | 10 ft (3.0m) | 3/8 in (9.5mm) | 3/8 in | H73810 | 10 ft (3.0m) | 3/8 in (9.5mm) | 3/8 in |
| H43825 | 25 ft (7.6m) | 3/8 in (9.5mm) | 3/8 in | H53825 | 25 ft (7.6m) | 3/8 in (9.5mm) | 3/8 in | H73825 | 25 ft (7.6m) | 3/8 in (9.5mm) | 3/8 in |
| H43850 | 50 ft (15.2m) | 3/8 in (9.5mm) | 3/8 in | H53850 | 50 ft (15.2m) | 3/8 in (9.5mm) | 3/8 in | H73850 | 50 ft (15.2m) | 3/8 in (9.5mm) | 3/8 in |
| H4381X | 100 ft (30.5m) | 3/8 in (9.5mm) | 3/8 in | H5381X | 100 ft (30.5m) | 3/8 in (9.5mm) | 3/8 in | H7381X | 100 ft (30.5m) | 3/8 in (9.5mm) | 3/8 in |
| H45010 | 10 ft (3.0m) | 1/2 in (12.7mm) | 1/2 in | H55010 | 10 ft (3.0m) | 1/2 in (12.7mm) | 1/2 in | H75010 | 10 ft (3.0m) | 1/2 in (12.7mm) | 1/2 in |
| H45025 | 25 ft (7.6m) | 1/2 in (12.7mm) | 1/2 in | H55025 | 25 ft (7.6m) | 1/2 in (12.7mm) | 1/2 in | H75025 | 25 ft (7.6m) | 1/2 in (12.7mm) | 1/2 in |
| H45050 | 50 ft (15.2m) | 1/2 in (12.7mm) | 1/2 in | H55050 | 50 ft (15.2m) | 1/2 in (12.7mm) | 1/2 in | H75050 | 50 ft (15.2m) | 1/2 in (12.7mm) | 1/2 in |
| H4501X | 100 ft (30.5m) | 1/2 in (12.7mm) | 1/2 in | H5501X | 100 ft (30.5m) | 1/2 in (12.7mm) | 1/2 in | H7501X | 100 ft (30.5m) | 1/2 in (12.7mm) | 1/2 in |
| 工作压力 | 4500psi(310bar),5600psi(386bar),7250psi(500bar) |
| 额定温度（所有规格） | -40 to 356° F(-40 to 180°C) |
| 耐化学性 | 软管覆盖层能耐受多种溶剂，酸和化学树脂 |
| 耐候性 | 软管覆盖层具有耐受氧气、臭氧、紫外线光照和常规气候条件的卓越性能 |
| 电气性能 | 导电软管 |
| Xtreme-Duty 无气高压软管已经通过右列质量和性能测试 | 冲击、冷弯、长度变化、爆裂、柔韧性、目测检查 |
