型号 | 能力螺丝直径 mm | 转矩范围N·m | 无负荷空转速度rpm | 全长(不包括套筒或者刀头)mm | 重量(不包括套筒或者刀头)kg | 轴心到侧面距离 mm | 套筒插入尺寸 mm | 软管接头螺纹 | 推荐的软管内径 mm | 空气耗气量m3/min | 噪声值 dB(A) | 产品代码 | ||
0.5MPa | 0.6MPa | 0.5MPa | 0.6MPa | |||||||||||
U-410 | 4-5 | 6.0-8.5 | 7.0-10.0 | 10000 | 10500 | 177 | 1.00 | 22.0 | 9.5Sq | PT¼ | 6.35 | 0.15 | 70 | 19131 |
UX-450 | 5 | 7.7-13.0 | 9.0-15.0 | 9000 | 9500 | 147 | 0.85 | 22.0 | 9.5Sq | PT¼ | 6.35 | 0.20 | 65 | 18221 |
UX-500 | 5-6 | 13.0-21.0 | 15.0-25.0 | 9000 | 9300 | 147 | 0.87 | 22.0 | 9.5Sq | PT¼ | 6.35 | 0.25 | 70 | 17751 |
UX-612 | 6-8 | 17.0-30.0 | 20.0-35.0 | 9000 | 9300 | 160 | 0.95 | 25.5 | 9.5Sq | PT¼ | 9.5 | 0.32 | 75 | 17881 |
UX-700 | 8 | 21.0-38.0 | 25.0-45.0 | 8700 | 9000 | 169 | 1.38 | 25.5 | 9.5Sq | PT¼ | 9.5 | 0.35 | 72 | 19401 |
UX-800 | 8-10 | 30.0-51.0 | 35.0-60.0 | 8500 | 9000 | 175 | 1.70 | 28.0 | 9.5Sq | PT¼ | 9.5 | 0.40 | 75 | 19421 |
UX-900 | 10 | 38.0-64.0 | 45.0-75.0 | 7300 | 7600 | 181 | 1.88 | 30.0 | 12.7Sq | PT¼ | 9.5 | 0.42 | 75 | 19431 |

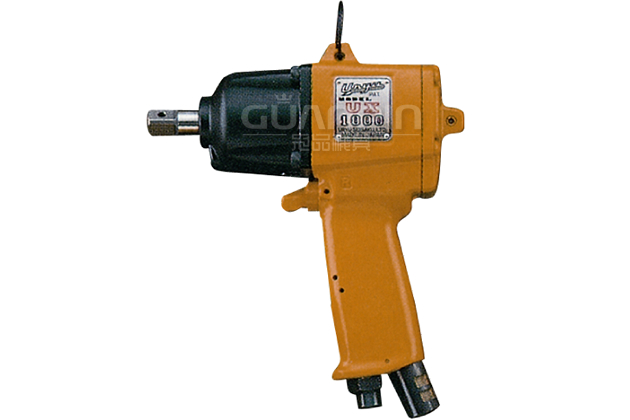

UX-1000 | 10-12 | 43.0-81.0 | 50.0-95.0 | 6500 | 6800 | 187 | 2.20 | 33.0 | 12.7Sq | PT¼ | 9.5 | 0.51 | 75 | 19441 |
UX-1300 | 12-14 | 68.0-110.0 | 80.0-130.0 | 5800 | 6200 | 205 | 2.70 | 36.0 | 12.7Sq | PT¼ | 9.5 | 0.55 | 77 | 19461 |

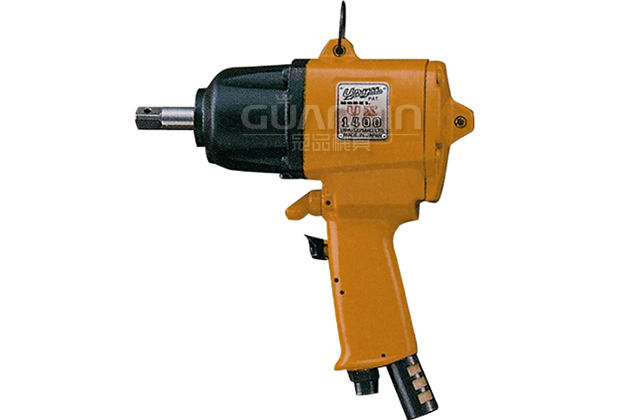

UX-1400 | 14 | 85.0-135.0 | 100.0-160.0 | 5000 | 5300 | 224 | 3.20 | 40.0 | 12.7Sq | PT¼ | 9.5 | 0.60 | 79 | 19531 |
UX-1620 | 14-16 | 100.0-160.0 | 120.0-190.0 | 4700 | 5000 | 241 | 3.60 | 40.0 | 19.0Sq | PT¼ | 9.5 | 0.65 | 82 | 19961 |

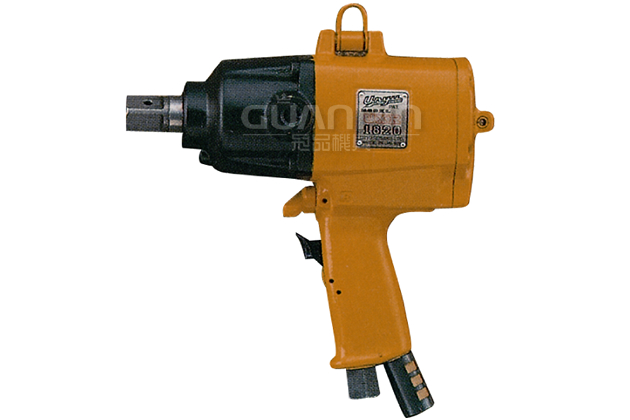

UXR-1820 | 16-18 | 135.0-215.0 | 160.0-250.0 | 4400 | 4600 | 242 | 4.10 | 42.0 | 19.0Sq | PT⅜ | 12.7 | 0.75 | 84 | 17321 |
UXR-2000 | 18-20 | 255.0-385.0 | 300.0-450.0 | 4000 | 4200 | 282 | 6.50 | 47.0 | 19.0Sq | PT⅜ | 12.7 | 0.90 | 85 | 17601 |
U-350D | 3-4 | 3.0-5.0 | 3.5-5.8 | 10000 | 10500 | 154 | 0.77 | 22.0 | 6.35Hex | PT¼ | 6.35 | 0.15 | 74 | 19241 |
U-410D | 4-5 | 6.0-8.5 | 7.0-10.0 | 10000 | 10500 | 188 | 1.00 | 22.0 | 6.35Hex | PT¼ | 6.35 | 0.15 | 70 | 19151 |
UX-450D | 5 | 6.8-12.0 | 8.0-14.0 | 9000 | 9500 | 152 | 0.85 | 22.0 | 6.35Hex | PT¼ | 6.35 | 0.20 | 65 | 18241 |
UX-500D | 5-6 | 11.0-17.0 | 13.0-20.0 | 9000 | 9300 | 152 | 0.87 | 22.0 | 6.35Hex | PT¼ | 6.35 | 0.25 | 70 | 17761 |
UX-612D | 6-8 | 13.5-24.0 | 16.0-28.0 | 9000 | 9300 | 165 | 0.95 | 22.5 | 6.35Hex | PT¼ | 9.5 | 0.32 | 75 | 17891 |
UX-700D | 8 | 17.0-31.0 | 20.0-36.0 | 8700 | 9000 | 174 | 1.38 | 25.5 | 6.35Hex | PT¼ | 9.5 | 0.35 | 72 | 19501 |
